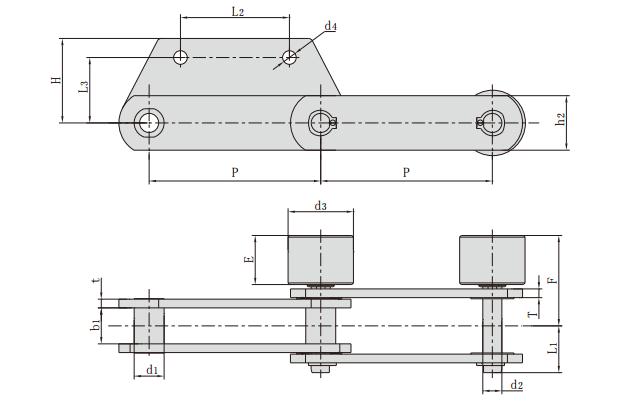

P315F30SR1_帶附板輸送鏈_工程鏈條
|
鏈號 |
節距 |
滾子直徑 |
內節內寬 |
銷軸直徑 |
銷軸長度 |
鏈板高度 |
鏈板厚度 |
抗拉強度 |
平均抗拉強度 |
|
P |
d1 |
b1 |
d2 |
L1 |
h2 |
t/T |
Q |
Qo |
|
mm |
mm |
mm |
mm |
mm |
mm |
mm |
kN/Ibf |
kN |
|
P315F30SR1 |
315.0 |
55.0 |
60.0 |
30.0 |
63.5 |
90.0 |
12.0 |
630/141624 |
693.0 |
|
鏈號 |
H |
L2 |
L3 |
d4 |
F |
E |
d3 |
|
mm |
mm |
mm |
mm |
mm |
mm |
mm |
|
P315F30SR1 |
120.0 |
160.0 |
85.0 |
22.0 |
123.5 |
60.0 |
120.0 |
